SolaX Home Batteries in Australia
Store Your Solar Energy. Power Your Home Smarter.
Make more of the solar energy your home generates with a SolaX home battery. Store surplus solar electricity during the day and use that stored energy in the evening or when your household needs it.
At Make My Solar, we help Australian homeowners explore SolaX solar battery storage solutions, compare available battery capacities and understand which options may suit their household electricity usage.
Whether you're adding battery storage to an existing solar system or planning a new solar and battery installation, we'll help you consider inverter compatibility, usable capacity, backup requirements and your energy goals.
What Is a SolaX Home Battery?
A SolaX home battery stores surplus solar electricity for use later, helping your home use more of its own solar energy after sunset.
During the day, solar power runs your home and can charge the battery. At night, stored energy can help power your appliances. If solar and battery supply aren't enough, your home can draw electricity from the grid.
HS36 & HS51 Battery Series
Two modular high-voltage LFP battery families engineered for different home energy demands. The HS36 delivers reliable everyday storage from 7.3–47.9 kWh, while the HS51 scales up to 66.5 kWh with higher output for larger homes and three-phase systems.

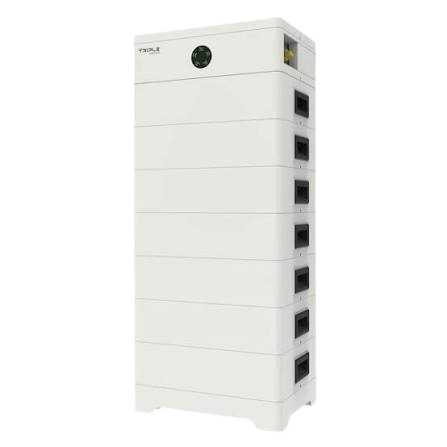

SolaX HS36
A compact, stackable LFP battery built for reliable daily cycling and straightforward expansion.
Up to 50 A charge/discharge
- LFP (LiFePO₄) chemistry
- >6,000 cycles at 90% DOD
- IP65 protection rating
- Battery heating for cold climates
- Stackable plug-and-play modules
- Remote diagnosis & upgrades

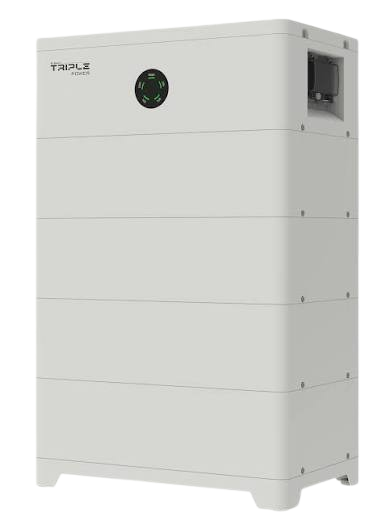

SolaX HS51
Higher output and capacity for homes that need serious storage power and faster energy transfer.
Up to 70 A charge/discharge
- LFP (LiFePO₄) chemistry
- >6,000 cycles at 90% DOD
- IP66 protection rating
- Optional aerosol fire suppression
- Supports up to 3 battery towers
- Optimizer version with active balancing
Key Specifications at a Glance
Compare the essential technical parameters that distinguish the HS36 and HS51 battery families.
| Specification | HS36 Series | HS51 Series |
|---|---|---|
| Nominal energy range | 7.3 – 47.9 kWh | 10.2 – 66.5 kWh |
| Energy per module | 3.68 kWh | 5.12 kWh |
| Max charge/discharge current | 50 A | 70 A |
| Cycle life (90% DOD) | >6,000 cycles | >6,000 cycles |
| Ingress protection | IP65 | IP66 |
| Depth of discharge | 90% | 90% |
| Module dimensions (W×H×D) | 510 × 152 × 365 mm | 600 × 168 × 376 mm |
| Module weight | 34 kg (±1 kg) | 46 kg / 47.1 kg (optimizer) |
| Max configuration | 13 modules | 13 modules |
| Battery towers (with TCBox-70) | — | Up to 3 towers |
| Fire suppression option | — | Yes (aerosol) |
| Optimizer version | — | Available (active balancing) |
Not sure whether HS36 or HS51 suits your home?
We can help compare storage capacity, your electricity usage, solar system size and inverter compatibility to recommend the right battery configuration.
What Size SolaX Battery Do You Need?
Choosing the right capacity means storing enough electricity to meet your needs, without paying for more than you can reasonably use. The best option depends on your solar generation, evening usage, inverter capability and budget.
Smaller systems
Suits moderate evening use with enough solar surplus to recharge regularly. A sensible starting point for self-consumption.
1–2 person homesMedium systems
Handles families running air conditioning, cooking appliances and entertainment after work. Capacity depends on appliance runtime.
3–4 person homesLarger systems
For high consumption, substantial evening loads or plans to expand. Must be matched to inverter output and charging capacity.
5+ person / high-loadFind Your Configuration
Both the HS51 and HS36 series are modular, each HS51 module adds 5.1 kWh and each HS36 module adds 3.68 kWh. Start smaller and add modules as your needs grow.
| Modules | HS51 Series 5.1 kWh per module | HS36 Series 3.68 kWh per module |
|---|---|---|
|
2
Modules
|
10.2kWh
T-HS10.2
|
7.3kWh
T-BAT HS7.2
|
|
4
Modules
|
20.4kWh
T-HS20.4
|
14.7kWh
T-BAT HS14.4
|
|
6
Modules
|
30.7kWh
T-HS30.7
|
22.1kWh
T-BAT HS21.6
|
|
8
Modules
|
40.9kWh
T-HS40.9
|
29.5kWh
T-BAT HS28.8
|
|
10
Modules
|
51.2kWh
T-HS51.2
|
36.9kWh
T-BAT HS36.0
|
|
13
Modules
|
66.5kWh
T-HS66.5
|
47.9kWh
T-BAT HS46.8
|
Can You Get a Rebate on a SolaX Battery in Australia?
Eligible home battery installations can receive support through the Australian Government's Cheaper Home Batteries Program. The program provides around a 30% discount on eligible battery systems through small-scale technology certificates (STCs).
STC Support Tapers by Battery Size
From 1 May 2026, the level of STC support is tiered based on usable battery capacity. The first 14 kWh receives the full STC factor, with lower rates applying to additional capacity.
Important timing note: The STC factor also declines over time. For installations in May–December 2026, the STC factor is 6.8 per kWh. This will reduce to 5.7 in the first half of 2027 and continue declining until the scheme ends in 2030. The discount you receive is determined by the STC factor on the date your battery is installed, not when you sign a contract.
Eligibility Requirements for the Rebate
Meeting the eligibility criteria is essential before any incentive can be included in a quote. The program rules apply to the specific installation, not just the battery model.
▤ Battery & System Requirements
- Battery system must have a nominal capacity between 5 kWh and 100 kWh.
- Battery must be listed on the Clean Energy Council (CEC) approved product list at the time of installation.
- Must be paired with a new or existing solar PV system. Batteries installed without solar are not eligible.
- On-grid systems must have Virtual Power Plant (VPP) capability through the inverter.
- Only one battery system per premises can receive support.
⚙ Installation Requirements
- Installation must be completed by or supervised on-site by a Solar Accreditation Australia (SAA) accredited installer.
- Must comply with all relevant Australian Standards including AS/NZS 5139 (battery safety) and AS/NZS 4777 (grid connection).
- Battery must be tested as capable of storing and discharging energy on or after 1 July 2025.
- Installers must provide geotagged and timestamped photographs of critical labelling and serial numbers.
Does every SolaX battery qualify? No — do not assume that every SolaX model or configuration automatically qualifies. The exact product, inverter pairing and installation arrangement must be checked against the current CEC approved product list and program rules before an incentive is included in a quote.
Program rules, STC factors and eligibility criteria are subject to change. The figures shown reflect the program settings as published by the Australian Government as of 2026. Always confirm the current rules against the official Clean Energy Regulator and DCCEEW resources before quoting.
SolaX Battery Monitoring, Care & Warranty
Learn how to connect your phone to your SolaX system, understand your solar and battery data, look after your equipment safely and check the warranty conditions for your specific battery.
How your equipment works together
How to Connect Your Phone to a SolaX Inverter
Compatible SolaX systems can send monitoring information to SolaXCloud through a supported communication device and internet connection. If your installer has already registered your system, you may only need access to the existing site.
From installation to monitoring in six steps
The exact menu names and connection method vary by inverter, communication device and app version. Use the instructions for your particular device.
Before you start: Have your SolaXCloud login and the device registration QR code or number available. Your inverter must have a compatible communication device. If the system is already commissioned, ask your installer how to access the registered site rather than creating a duplicate.
Download the official SolaXCloud app
Search for SolaXCloud in the Apple App Store or Google Play Store and check the publisher before installing. You can also visit the official SolaXCloud website for more information.
Create an account or sign in
New users should follow the registration and email verification prompts. If your installer has already created the site, ask for the correct account access or invitation instead of setting up a second site.
Connect your phone to the device hotspot
For many Pocket Wi-Fi setups, open your phone's Wi-Fi
settings and select the network named
Wifi_Sxxxxxxxxx — the number matches the
Registration No. printed on your Pocket Wi-Fi dongle.
Access the dongle's setup page
Open a browser on your phone and go to
192.168.10.10 (Pocket Wi-Fi V3.0 and later) or
5.8.8.8 (older versions). Log in with username
admin and the password printed on the dongle
label.
Connect the dongle to your home Wi-Fi
Tap Find AP, select your home network (must be 2.4 GHz — 5 GHz is not supported), enter your Wi-Fi password and save. The dongle will reboot and connect automatically.
Open your monitoring dashboard
Return your phone to its normal Wi-Fi or mobile data connection, reopen the SolaXCloud app and select your registered site. Allow a few minutes for the device to come online and start reporting data.
Can't See Your Battery Data?
Check these common causes before attempting to reset or reconfigure the system.
Check your home internet, router and communication-device status. Follow the device-specific guide for Wi-Fi or network issues.
Check the correct QR code, registration number and setup method. Some devices use a hotspot, while others use a different process.
Refresh the app and allow time for data to update. Check for alerts and whether the system is communicating.
Contact the installer or appropriate SolaX support channel for account access or device-binding assistance.
What Can You Monitor in SolaXCloud?
Once a compatible system is connected, SolaXCloud can help you understand how your solar installation and battery are operating. The exact readings depend on your inverter, battery, meter, communication device and system configuration.
- ✓Solar generation — review the electricity your solar system produces when this data is supported.
- ✓Battery status — check available battery information, including charge level where supported.
- ✓Charging and discharging — understand when the battery is storing or supplying energy, depending on your setup.
- ✓Household energy flows — view supported consumption or grid information when the required meter and equipment are installed.
Information you may be able to view
This is a custom illustration, not a live SolaXCloud screen. Available measurements and display layouts vary by system.
Simple Habits for Safer Battery Ownership
Battery care should follow the instructions for your exact model. You do not need to open or repair the equipment to keep an eye on how the system is behaving.
Check your system regularly
Get familiar with the normal operation of your solar and battery system.
- Review available monitoring data periodically.
- Take note of persistent error messages or unexpected shutdowns.
- Remember that weather, season, household demand and settings affect energy flows.
- Keep a record of alerts before contacting your installer.
Keep the area suitable
Follow the manufacturer's installation and environmental requirements.
- Keep the area clear as specified in the product manual.
- Follow model-specific access, ventilation and cleaning guidance.
- Do not store items against or obstruct equipment where prohibited.
- Never open the battery enclosure or attempt electrical repairs yourself.
Know when to get help
Persistent alerts or physical changes should be assessed appropriately.
- Contact your installer about recurring faults or unexpected performance changes.
- Do not remove wiring or disconnect equipment unless instructed by a qualified professional.
- If you notice smoke, fire or a burning smell, keep away and contact emergency services.
- Follow the manufacturer's emergency and safety instructions.
Understand Your SolaX Battery Warranty
Warranty coverage is determined by the product and the applicable warranty document. Check the conditions for your particular battery instead of relying on the warranty period alone.
Warranty period
SolaX Australia's warranty information lists standard 10-year warranty periods for multiple residential battery families. Confirm the period that applies to your exact model and warranty version.
Read SolaX warranty information ↗Performance conditions
A warranty period does not mean a battery will maintain its original capacity indefinitely.
- Check applicable capacity-retention conditions.
- Review any energy-throughput, cycle or operating limits stated in the document.
- Confirm the warranty's exclusions and required operating conditions.
Keep your documents
Accurate records make it easier to identify your product and provide evidence for a claim.
- Keep the invoice and installation paperwork.
- Save the battery model and serial number.
- Keep the applicable warranty document and registration details.
- Record relevant fault codes and dates.
What to Confirm Before Installation
Ask your installer for the warranty applicable to the exact battery model being quoted and keep a copy for your records.
- ✓Exact product: Verify the model and applicable warranty period.
- ✓Start date: Confirm when coverage begins and whether registration or commissioning requirements apply.
- ✓Performance terms: Read the relevant capacity-retention and energy-throughput conditions, if specified.
- ✓Exclusions: Understand the applicable exclusions and maintenance requirements.
- ✓Claim procedure: Check whom to contact and what documents or evidence may be required.
Find the Right Information for Your Model
For model-specific instructions, use SolaX's published documents. Setup methods and warranty terms can change between product versions.
Monitoring features, internet setup methods, maintenance requirements and warranty conditions depend on the specific SolaX products and installation. The dashboard graphics above are illustrative and do not display live system data. Always follow the applicable manufacturer documentation and Australian electrical safety requirements.
Get Your SolaX Battery Quote
Tell us about your home and energy needs. Our team will help you explore a suitable SolaX HS36 or HS51 battery configuration.
